Session Bean facade to an Entity EJB

Step by step example of creating a session bean as business facade to an
entity EJB. It is a complete working example.

General

Author:

Sebastian
Hennebrüder

Revised
by Sascha Wolski

Date:

Updated January, 10th 2005

Updated November 1st 2004

First Edition October, 1st 2004

Source
code:

http://www.laliluna.de/assets/tutorials/session_bean_facade_ejb_xdoclet.zip

http://www.laliluna.de/assets/tutorials/session_bean_facade_ejb_xdoclet.pdf

Using the source code.

The source code does
not include any libraries but the sources. Create a web project, add
the libraries manually or with the help of MyEclipse and the extract
the sources we provided to your project.

Development Tools

Eclipse 3.x

MyEclipse
plugin 3.8

(A
cheap and quite powerful Extension to Eclipse to develop Web
Applications and EJB (J2EE) Applications. I think that there is a
test version availalable at MyEclipse.)

Database

PostgreSQL
8.0 Beta or MySQL

Application
Server

Jboss
3.2.5

Introduction

You
are an EJB expert and going to develop a very complicated library
system. For this system you need two EJBs.

Book
Entity EJB

provides
the book class

LibraryManager
Session EJB

This
is a session facade providing business logic methods like

A
session fasade does not return the Book bean itself but a value
object. This is another design pattern.

So
good luck!

Create a EJB
project

Type ?Strg + n? to open the ?new
project? dialog.

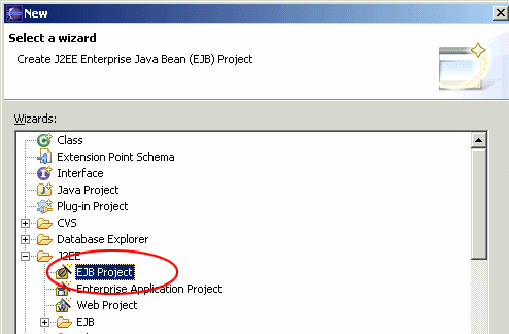

Select an EJB
Project.



Give
a name to your project and get it created.

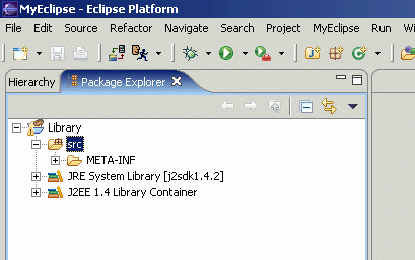

You
will see the following in your package explorer.



Configure xDoclet


Go
to the project property dialog (Strg + Enter).


Choose
?MyEclipse Xdoclet?.

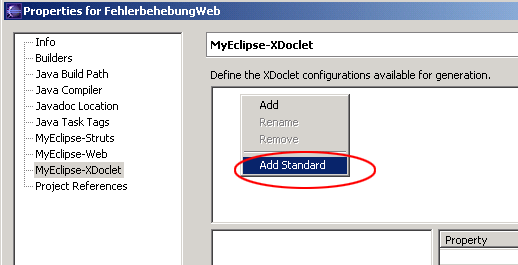

Right
click in the right upper window and choose ?Add Standard?.

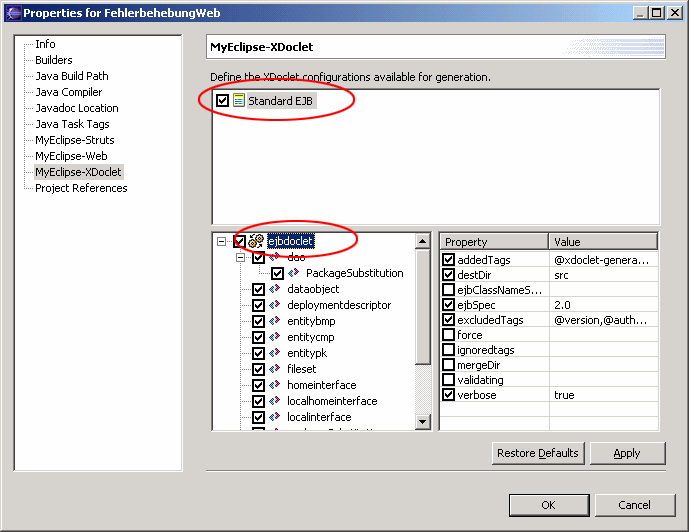

Choose
“Standard EJB” in the list.



Click
on ?Standard EJB? than right click on ?ejbdoclet?.

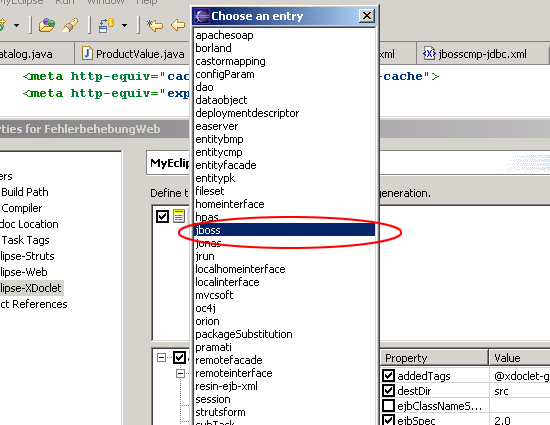

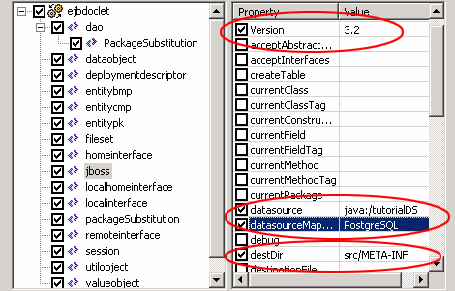

Choose
jboss from the list.


Add the following
information






Create a Database


Do it
how ever you like.


Create the Datasource


Copy
the driver (you will find it on http://www.postgresql.org) to


…jboss-3.2.4serverdefaultlib




Look
for example configuration files in


jboss-3.2.4docsexamplesjca




Copy
the file postgres-ds.xml to


jboss-3.2.4serverdefaultdeploy


change
the content of the file to




<datasources>
<local-tx-datasource>
<jndi-name>tutorialDS</jndi-name>
<connection-url>
jdbc:postgresql://localhost:5432/database-name
</connection-url>
<driver-class>org.postgresql.Driver</driver-class>
<user-name>username</user-name>
<password>password</password>
</local-tx-datasource>
</datasources>




Create an Entity EJB.


We will create a
Book EJB providing three fields an id, a title and a status field
called available.

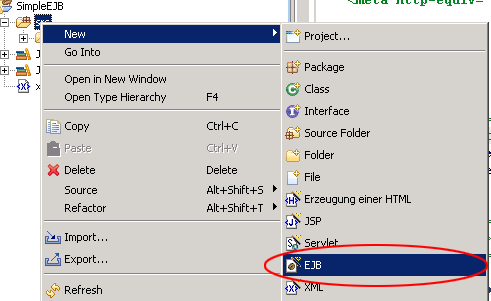

Type
?Strg + n? or make a right mouse click and select EJB.

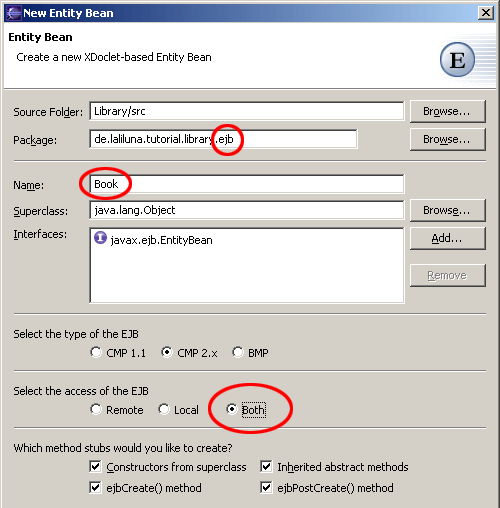

Give
it a nice package name AND make sure that it ends with

.ejb




Now
you should have a nice basic EJB class from which xDoclet may
generate your interfaces later.



Change
the ejb tag in front of your class to:


* @ejb.bean name = "Book"<br>* type = "CMP"<br>* cmp-version = "2.x"<br>* display-name = "Book"<br>* description = "Book EJB"<br>* view-type = "both"<br>* jndi-name = "ejb/BookHome"<br>* local-jndi-name = "ejb/BookLocalHome"<br>* primkey-field = "id"<br>* @ejb.persistence table-name = "tbook"<br>* @jboss.persistence create-table = "true" pk-constraint = "true" <br>* @ejb:util<br>* generate="physical"<br>* @ejb.value-object match = "*"<br>*/



We
are lazy so we will have jboss create our table.




Further
have a look at ejb.value-object, we will use the value object design
pattern and the VO is created for us.






Add
the following getter, setter and the javaDoc comments to your
sourcecode.






public abstract class Book implements EntityBean {

/* The EntityContext */

private EntityContext context;

/
 @ejb.interface-method view-type = “both”
* @ejb.persistence column-name = “fid”
* @ejb.pk-field
*
* @return
/
public abstract Integer getId();

/
 @ejb.interface-method view-type = “both”
*
* @param id
/
public abstract void setId(Integer id);
/
 @ejb.interface-method view-type = “both”
* @ejb.persistence column-name = “ftitle”
*
* @return
/
public abstract String getTitle();

/
 @ejb.interface-method view-type = “both”
*
* @param title
/
public abstract void setTitle(String title);
/
 @ejb.interface-method view-type = “both”
* @ejb.persistence column-name = “favailable”
*
* @return
/
public abstract boolean getAvailable();

/
 @ejb.interface-method view-type = “both”
*
* @param available
*/
public abstract void setAvailable(boolean available);


Change
the ejb create method in your class. Make sure it returns an Integer.
You always have to return your primary key class. We declared the
Integer field id as primary key so it has to be Integer.


public Integer ejbCreate() throws CreateException {
Random random = new Random();
this.setId(new Integer(random.nextInt()));
return null;
}




I
am not sure if that primary key is really good, but good primary keys
are not the scope of the tutorial.


Create the interfaces with xDoclet.

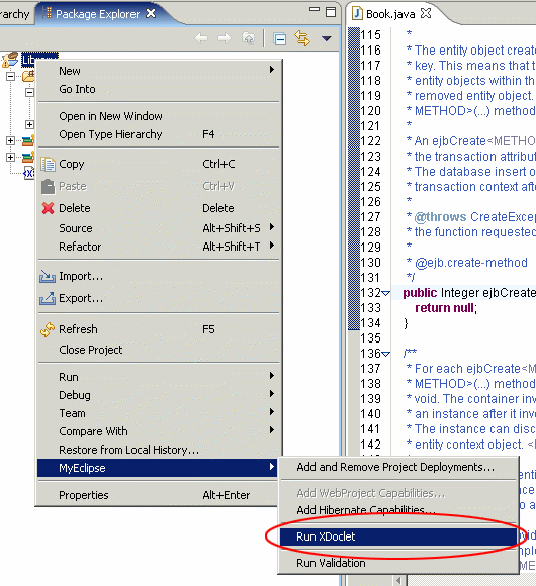

Calling
xDoclet the first time

right
click on the project in the package explorer, click MyEclipse and
then ?Run Xdoclet?.


Now
all your home and class interfaces and the xml files are generated.

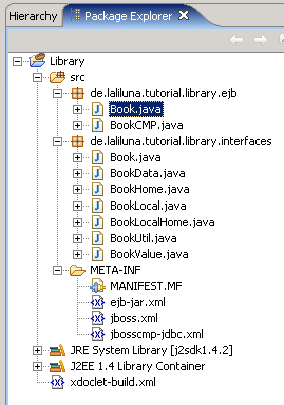

When
you have a look at the package explorer, you should find all the
interfaces and xml files.

If
you don`t see the new files, you have to refresh the content of your
project.




Once
you have the BookValue class available, add a declaration for the
getters and setters in your book bean.


If
you don’t this, we will not be able to access the value object later.


/**<br>* declare interface method to access the valueObject<br>* <br>* @ejb.interface-method view-type = "both"<br>* <br>* @return<br>*/<br>public abstract BookValue getBookValue();<br><br>/**<br>* declare interface method to access the valueObject<br>* <br>* @ejb.interface-method view-type = "both"<br>* <br>* @param name<br>*/<br>public abstract void setBookValue(BookValue bookValue);





Then
run Xdoclet again.

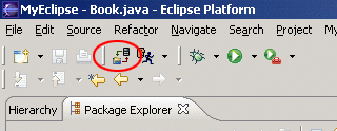

Click
this symbol to run Xdoclet again.









Start Jboss and deploy your entity EJB.




Start
your jboss server.


You
should find a message like the following in your console.


23:08:29,593
INFO [tutorialDS] Bound connection factory for resource adapter for
ConnectionManager ‘jboss.jca:service=LocalTxCM,name=tutorialDS to
JNDI name ’java:/tutorialDS’

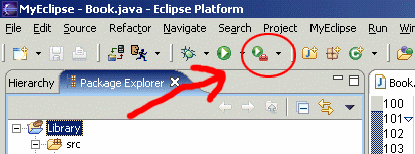

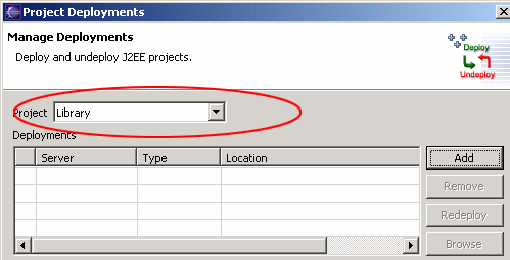

Click
the symbol to call the deployment dialog.

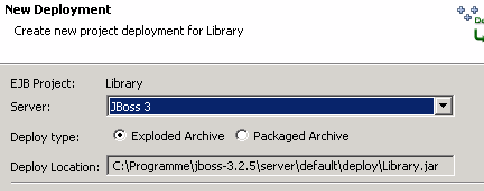

Choose
your project.


Add
the Jboss server.



As
deploy type I prefer the exploded archive. From jboss 3.2.5 the
deployment is immedately updated.


Only
from time to time you have to call a redeployment. A server restart
is rarely needed.





Deploy
your Entity EJB. When everything is OK the console talks to you:



23:21:54,000
INFO [EjbModule] Deploying Book

23:21:54,406
INFO [Book] Created table ‘tbook’ successfully.

23:21:54,406
INFO [EJBDeployer] Deployed:
file:/C:/Programme/jboss-3.2.5/server/default/deploy/Library.jar/



Creating the
session EJB


Create
a new EJB (see the book EJB).

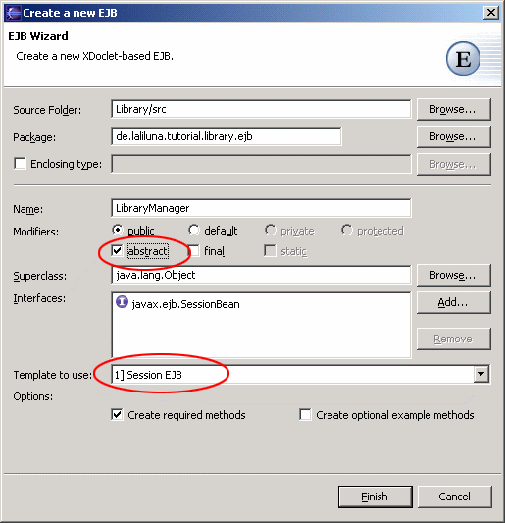

Make
sure its abstract and choose Session EJB as template.

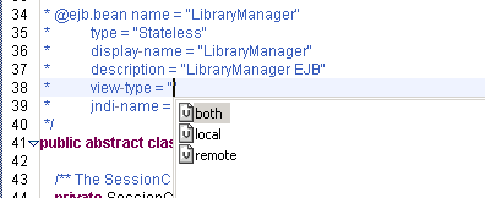

Change
the viewType of the EJB.



The
viewType declares

what interfaces will be generated.

Local
interfaces

Remote
interfaces

or
both.


Local
interfaces

with
a local interface your EJB can only be called from clients within the
same Virtual Machine.


Remote
interfaces

Clients
can call you from remote machines and from local machines.


Local
interfaces are much faster as they are direct pointers to your
classes. So you should prefer them in your application. For
testing purpose, create both interfaces.



* @ejb.bean name = "LibraryManager"<br>* type = "Stateless"<br>* display-name = "LibraryManager"<br>* description = "LibraryManager EJB"<br>* view-type = "both"<br>* jndi-name = "ejb/LibraryManagerHome"<br>*/<br>public abstract class LibraryManager implements SessionBean {



Implement
the business logic. Make sure that your business logic functions
throws an EJBException.




/
 returns a Value Object from the book when the book exists and is
* available, else returns null
*
* @ejb.interface-method view-type = “both”
* @param primaryKey
* @return @throws
* EJBException
/
public BookValue lendBook(Integer primaryKey) throws EJBException {

BookLocal bookLocal = null;

try {
// HS 30.09.2004 get a context to look the home interface by JNDI

InitialContext context = new InitialContext(System.getProperties());

BookLocalHome bookLocalHome = (BookLocalHome) context
.lookup(BookLocalHome.JNDI_NAME);

bookLocal = bookLocalHome.findByPrimaryKey(primaryKey);
} catch (FinderException e) {
// laliluna 30.09.2004 do nothing but log message
e.printStackTrace();
} catch (NamingException e) {
// laliluna 30.09.2004 do nothing but log message
e.printStackTrace();
}

// laliluna 30.09.2004 book is availabe than return valueObject else
// return null
if (bookLocal != null && bookLocal.getAvailable()) {
bookLocal.setAvailable(false);
return bookLocal.getBookValue();
}

else
return null;
}

/
 returns book to library and sets available to true
* @ejb.interface-method view-type = “both”
*
* @param bookValue
* @throws EJBException
*/
public void returnBook(BookValue bookValue) throws EJBException {

// laliluna 01.10.2004 check params
if (bookValue != null) {
BookLocal bookLocal = null;

try {
// HS 30.09.2004 get a context to look the home interface by
// JNDI
InitialContext context = new InitialContext(System
.getProperties());

BookLocalHome bookLocalHome = (BookLocalHome) context
.lookup(BookLocalHome.JNDI_NAME);

// laliluna 01.10.2004 find bookObject by primary key
bookLocal = bookLocalHome.findByPrimaryKey(bookValue
.getPrimaryKey());
// laliluna 01.10.2004 return book and set availability to true
bookLocal.setAvailable(true);
} catch (FinderException e) {
// laliluna 30.09.2004 do nothing but log message
e.printStackTrace();
} catch (NamingException e) {
// laliluna 30.09.2004 do nothing but log message
e.printStackTrace();
}
}
}


Run
Xdoclet and check in the console that your EJBs are properly
deployed.

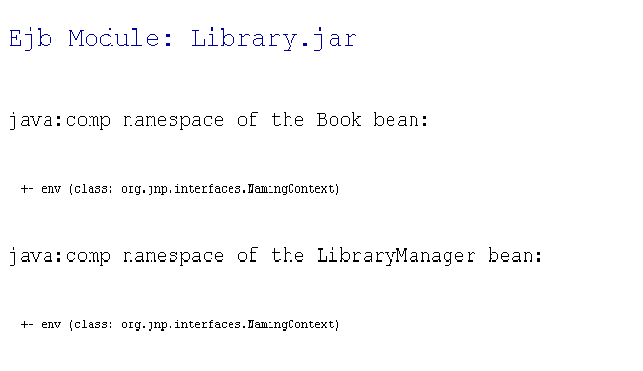

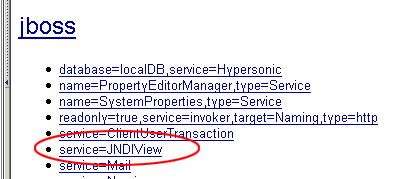

Checking the deployment








You can see your
bean module now and it should also occur in the global JNDI
namespace.



Test your EJBs

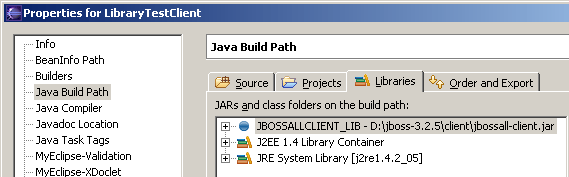

Create
a Java project. Open the project properties and add the library j2ee
and the jboss client jar (see picture)

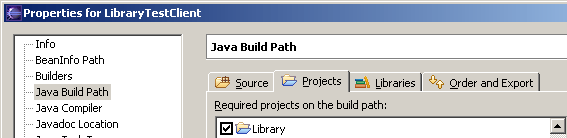

Add
the EJB project in the project tab to the build path.





Create
a simple java class with a main method like the following one.


package de.laliluna.tutorial.library.test;<br><br>import java.rmi.RemoteException;<br>import java.util.Properties;<br><br>import javax.ejb.CreateException;<br>import javax.ejb.EJBException;<br>import javax.naming.Context;<br>import javax.naming.InitialContext;<br>import javax.naming.NamingException;<br>import javax.rmi.PortableRemoteObject;<br><br>import de.laliluna.tutorial.library.interfaces.*;<br><br>/**<br> * @author laliluna<br> *  <br> */<br>public class TestLibraryManager {<br><br>  private Properties properties;<br><br>  public TestLibraryManager() {<br>    // [laliluna] the properties specifies where the JNDI lookups for the EJBs can be made<br>    properties = new Properties();<br>    properties.put("java.naming.factory.initial",<br>        "org.jnp.interfaces.NamingContextFactory");<br>    properties.put("java.naming.factory.url.pkgs",<br>        "org.jboss.naming:org.jnp.interfaces");<br>    properties.put("java.naming.provider.url", "jnp://localhost:1099");<br>    properties.put("jnp.disableDiscovery", "true");<br>  }<br><br>  public static void main(String[] args) {<br>    TestLibraryManager libraryManager = new TestLibraryManager();<br>    libraryManager.doTheTest();<br>  }<br><br>  public void doTheTest() throws EJBException {<br><br>    // [laliluna] a object we will use to convert the home interfaces<br>    Object object;<br>    try {<br>      // laliluna 01.10.2004 get context to find homeinterfaces in jndi<br>      // context<br>      Context context = new InitialContext(properties);<br><br>      // laliluna 01.10.2004 create a dummy book<br>      object = context.lookup(BookHome.JNDI_NAME);<br>      /*<br>       * [laliluna] <br>       * when using the remote interface you have to use the PortableRemoteObject to convert the object to your class/interface<br>       * <br>       */<br>      BookHome bookHome = (BookHome) PortableRemoteObject.narrow(object, BookHome.class);<br>      Book book = bookHome.create();<br>      book.setAvailable(true);<br>      book.setTitle("Learning EJBeing");<br><br>      // laliluna 01.10.2004 dummy variable to hold a book primaryKey<br>      Integer bookPrimaryKey = book.getId();<br><br>      // laliluna 01.10.2004 getting a session EJB<br>      object = context<br>          .lookup(LibraryManagerHome.JNDI_NAME);<br>      LibraryManagerHome libraryManagerHome = (LibraryManagerHome) PortableRemoteObject.narrow(object, LibraryManagerHome.class);<br>      LibraryManager libraryManager = libraryManagerHome.create();<br><br>      // laliluna 01.10.2004 lend a book<br>      System.out.println("book available:" + book.getAvailable());<br>      BookValue bookValue = libraryManager.lendBook(bookPrimaryKey);<br>      System.out.println("book available:" + book.getAvailable());<br>      libraryManager.returnBook(bookValue);<br>      System.out.println("book available:" + book.getAvailable());<br><br>    } catch (EJBException e) {<br>      e.printStackTrace();<br>    } catch (NamingException e) {<br>      e.printStackTrace();<br>    } catch (CreateException e) {<br>      e.printStackTrace();<br>    } catch (RemoteException e) {<br>      e.printStackTrace();<br>    }<br>  }<br><br>}



Run
it and have a look at the database to check the results.




That’s
it, congratulations!
