Spring DAO with JBDC, Eclipse, PostgreSQL, MySql
This tutorial explains how to implement the design pattern Data Access
Objects (DAO) to access a Database with JDBC. In addition the
tutorial shows how to use Inversion of controll to improve your code
quality. We will use the Spring framework.
Do you need expert help or consulting?
Get it at http://www.laliluna.de
In-depth, detailed and easy-to-follow
Tutorials for JSP, JavaServer Faces, Struts, Spring, Hibernate
and EJB
Seminars
and Education at reasonable prices on a wide range of Java
Technologies, Design Patterns, and Enterprise Best Practices Improve
your development quality
An hour of support can save you a
lot of time – Code and Design Reviews to insure that the best
practices are being followed! Reduce solving and testing time
Consulting on Java technologies
Get to know best suitable libraries and technologies
General
Author:
Sebastian Hennebrueder
Date:
December, 09 2005
Used
software and frameworks
Eclipse
3.1
Spring
1.2.6 http://www.springframework.org
Recommended
MyEclipse
4 http://www.myeclipseide.com
Source
code:
http://www.laliluna.de/download/eclipse-spring-jdbc-tutorial.zip
PDF
version of the tutorial:
http://www.laliluna.de/download/eclipse-spring-jdbc-tutorial-en.pdf
Table
of Content
Spring
DAO with JBDC 1
General 1
What
is the Spring framework? 2
Application
and business logic 2
Transaction
Management 2
Integration
of resource files 2
Integration
of messaging 2
JMX
(Java Management Extension) 3
Integration
of JDBC, Hibernate, JDO, EJB to access databases 3
Web
application development 3
Aspect
Oriented Programming and Inversion of Control 3
Springs
advantages 4
Little
invasive 4
Good
Design 5
Introduction
to our example 5
Prepare
the project 5
JDBC
Libraries 9
Configure
logging 9
Create
the database and tables 10
The
structure 10
Why
interfaces are useful? 11
Creating
the basic classes 12
Class
book 12
Interface
and Implementation 13
Adding
inversion of control 16
Configuration
in Java classes 16
Configuration
with Spring config files 18
Test
your application 19
Outlook 20
Replacing
the datasource with a connection pool 20
Object
Relational Mapping 20
Alternative
implementation 20
Adding
transactions to our application 20
Copyright
and disclaimer 20
What is the Spring framework?
Spring
is a lot of things at the same time and I will try to give you a
short understandable overview. A full overview to all functions can
be found in the documentation which is included in the download of
the Spring framework.
Application and business logic
Spring
provides functionality to implement a well designed business layer
for your application. It helps you implementing standard design
patterns like DAO or designing to interfaces and provides features
you need in all standard application and which allow you to integrate
different services. If you are familiar with EJB you may find a lot
of features you know from EJB. I speak about the advantages of
Spring later in this tutorial:
Transaction Management
You
can use a wide choice of transaction management solutions including
Hibernate, database transactions or the Transaction Management from
your Websphere or JBoss application server (JTA). The selection of a
transaction management solution is not very invasive, i.e. you can
easily change the transaction management without changing much of
your code.
Integration of resource files
A
complete library to read your resource and configuration files.
Integration of messaging
A
complete library to create Emails or messages using a Java Messaging
System. JMS is included in most J2EE application servers like JBoss,
Websphere etc. A JMS allows you for example to send messages
including objects (classes) between applications. For example your
Internet shop applications sends a message including the order class.
The message is read later by your enterprise resource planning
application.
JMX (Java Management Extension)
JMX
allows you to remote access other application from within your
application. Imagine a local Java application calling a remote server
to start jobs, getting information or do what ever you like. JMX
allows you to connect your application between multiple servers
across the Internet or a LAN.
Integration of JDBC, Hibernate, JDO, EJB to
access databases
Spring
allows to integrate any of this solutions to access your database.
The interface is well designed and lets you easily replace a JDBC
database access with a Hibernate based database access.
Hibernate,
JDO and EJB are solutions to map database data to classes, e.g.
Reading a line of the table book and writing it to a object of class
type book. This allows you to use classes instead of result sets in
your application and is considered as good design, because your
application keeps being object oriented.
If
you use JDBC access, Spring provides an abstract exception layer. If
you change your database from PostgreSQL to Oracle you do not have to
change the exception handling from OracleDataAcception to
PostgresDataException. Spring catches the application server specific
Exception and throws a Spring dataexception.
Web application development
Spring
provides his own web framework but also allows to use Struts,
Velocity, FreeMarker, Struts Tiles or Libraries to create XML, Excel,
PDF documents or reports. You can even develop an adapter for your
own web framework to use Spring for your business logic.
Aspect Oriented Programming and Inversion of
Control
AOP
is all about adding aspects to your code. So what are aspects? The
same as Cross Cutting Concerns? What are …? I do not want to tease
you but give you frequently used terms in the world of AOP.
Cross
Cutting Concerns are functions you need throughout your application.
This can be for example transactions, logging or functions you need
only for a limited time like measuring of process time to benchmark
your application.
Very
often you implement this code in each method of your business logic.
You will probably have already seen code like this or even written
code like this.
public void doMyBusiness(){<br><span> long startTime = 0;</span><br><span> if (DO_MEASURING)</span><br><span> startTime = System.currentTimeMillis();</span><br><span> </span><br><span> if (DO_LOGGING) {</span><br><span> Logger log = Logger.getLogger(this.getClass());</span><br><span> log.debug("I am in my DoBusiness method"); </span><br><span> }</span><br><span> </span><br><span> /* faked code</span><br><span> if (! Transactionmanager.transactionOpen())</span><br><span> MyTransaction tx = TransActionmanager.beginTransaction();</span><br><span>## Businesslogicmanager bl = Businesslogicmanager.getCurrentManager();</span><br><span>## bool success = bl.doMyWork();</span><br><span> if (success)</span><br><span> TransActionmanager.commitTransaction();</span><br><span> else</span><br><span> TransActionmanager.rollBack(); </span><br><span> */</span><br><span> </span><br><span> long endTime;</span><br><span> if (DO_MEASURING){</span><br><span> endTime = System.currentTimeMillis();</span><br><span> System.out.println("Needed time for "+this.getClass()+" "+((endTime-startTime)/1000));</span>
This example
has two lines of code, I marked them with # which are doing something
that has to do with the logic. The rest is needed but hhmm.. do I
need the rest here? It makes the code difficult to read and even more
difficult to test. This is where Aspect Oriented Programming comes on
the scene. It allows code like the following:
public void doMyBusiness(){
/* faked code
Businesslogicmanager bl = (Businesslogicmanager) beanFactory.
getBean (“Businesslogicmanager”);
Businesslogicmanager.doMyWork(); // and throw exceptions if you did not do it
*/
}
To have the
transaction, measurement and logging you add your aspects in a
configuration file.
….snip ……..
<property name=“interceptorNames”>
<list>
<value>logAdvice</value>
<value>measureAdvice</value>
</list>
</property>
…. snip …….
<property name=“transactionAttributes” >
<props>
<prop key=“borrowBooks”>PROPAGATION_REQUIRED</prop>
</props>
</property>
……
I thing that
this is impressive, isn’t it? Your code is by far better readable.
Springs advantages
Little invasive
Spring
is little invasive compared to other solutions. Using EJB version
2.1 will force you to extend EJBObject classes and other when you
want to create your business logic or your entity objects. Your code
is closely coupled to to the technology you choose. This is improved
in EJB 3 but EJB 3 is at the time (December 2005) still not not
integrated in all J2EE application servers.
Spring
allows you to use so-called POJO (Plain Old Java Objects) for your
domain classes (domain class = e.g. a class Book representing a
entity book) or your business logic. This will keep your code clean
and easily to understand.
Good Design
Spring
is very well designed even if I question the usefulness of the
runtime exception for example, the usefulness of all the adapters to
EJB access, transaction management etc. are enormous. They allow to
replace technology A with technology B when your application growths
and needs a more powerful solution or if you change the environment
or because of other reasons.
Runtime Exception in Spring
Spring does throw runtime exceptions
instead of checked exceptions. Runtime exceptions must not be catched
and if they happen and if they are not catched your application will
stop running with a standard java stack trace. Checked exceptions
must be catched. If you do not catch a checked exception in your
code, it can not be compiled. As it is a tedious task to catch all
the exceptions for example when using EJB technology and there are
bad developers catching exceptions without giving any feedback to the
user, the Spring developers decided to throw runtime exceptions, so
that if you do not catch an exceptions your application will break
and the user gets the application exception. Their second reasoning
is that most exceptions are unrecoverable so your application logic
can not deal with them anyway. This is true to some extend but in my
opinion at least the user should not see a Java stack trace from an
exception when using the application.
Even if they are right and most exceptions
are unrecoverable, I must catch them at least in the highest level
(dialogues) of my application, if I do not want a user to see a Java
Exception stack trace. The problem is that all IDEs recognizes
checked exceptions and tell me that I must still for example catch a
DataBaseNotAvailable exception and a doubleEntryForPrimaryKey
exception. But in this case I can decide that the user application
will stop for the first exception and will continue to the edit
dialogue for the second exception to allow the user to input a
different value for the primary key. Eclipse even creates the try
catch method for me.
Using RuntimeExceptions I must know which
exception can happen and write my code manually. I do not know if I
catched all the important runtime exceptions where I could allow the
application to continue running. And this is what I really dislike
about this strategy. But anyway, I came across a lot of very nice
design patterns in Spring and it will help even mediocre developers
as me ;-) to write nice code.
Introduction to our example
We
are responsible to create a library application. Your job is to
develop the business logic and to test it with a Java application as
client. We will create all access method do deal with a book.
Prepare the project
I
want to continue this project as web application, so I chose this
kind of project. When you do not have MyEclipse installed you may use
a Java project or have a look at the tutorial at
http://www.laliluna.de/articles/posts/webprojects-eclipse-jbosside-tutorial-en.html
to create a web project.

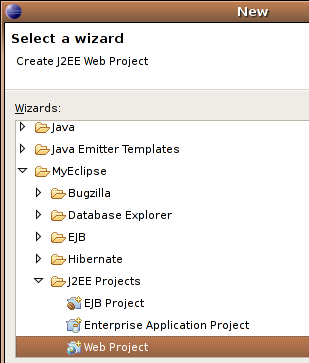

Press
Ctrl+n (Strg+n) and choose new webproject.

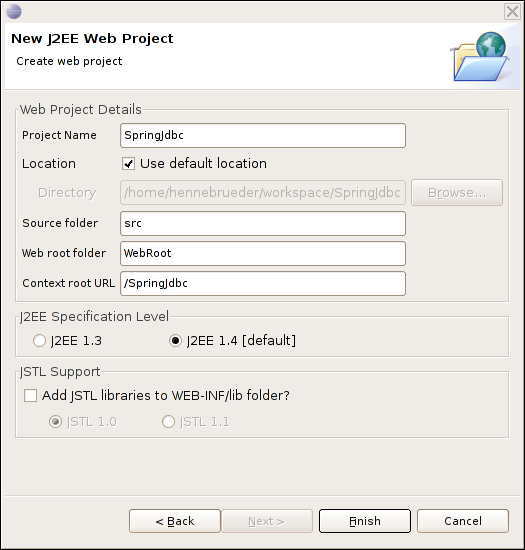

Call
your project SpringJdbc.

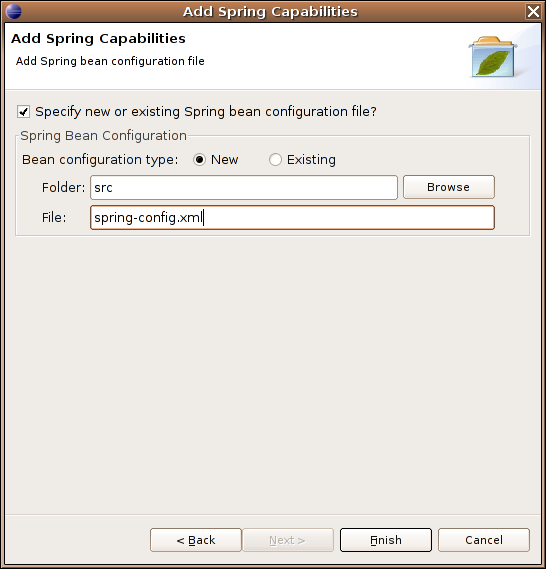

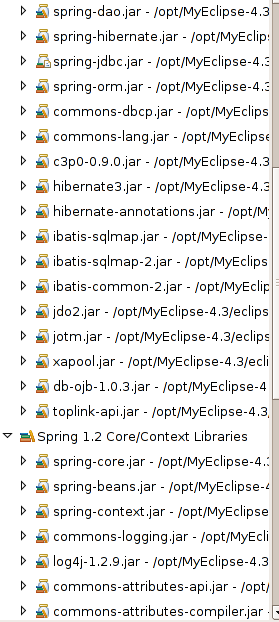

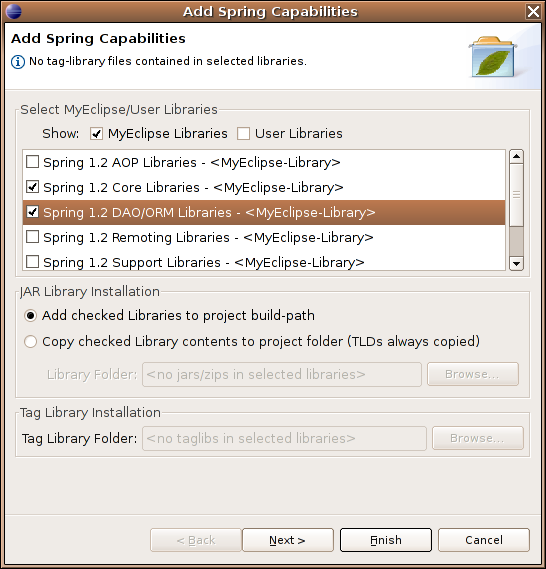

In
the next step we need to add the missing libraries. MyEclipse
provides a wizard to do this. For other user see below how to add
libraries.
Using
MyEclipse right click on your project -> MyEclipse -> Add
Spring capabilities. We will need the DAO/ORM libraries and the core.
In
the next step you can create a Spring configuration file.
If
you do not use MyEclipse download Spring from the website
http://www.springframework.org
We used version 1.2.6
Unpack
all the spring libraries from the zip or tgz file in a directory.
Libraries have names like spring.jar.
Open
the libraries dialog in the project properties (Alt+Enter) -> Java
Build Path -> Libraries -> Add external jar
Below
you can see the libraries added by MyEclipse. This is by far to much.
You will not need spring-hibernate, dbcp, ibatis and toplink
libraries.
JDBC
Libraries
You
will need a jdbc driver for your database. I used PostgreSQL. You can
get the driver from http://jdbc.postgresql.org/
. You can use the JDBC 3 driver if you are running a current j2sdk
like 1.4 and 1.5/5.0.
For
MySQL you can use the MySQL connector which can be found at
http://www.mysql.com/products/connector/j/
Configure logging
Spring
depends on log4j. If you use MyEclipse this is already provided with
the spring libraries. If not you can find the libraries here
http://logging.apache.org/log4j/docs/index.html
Create
a log4j.properties file in the src directory and add
the following code to have a debugging output to the console.
### direct log messages to stdout ###<br><span>log4j.appender.stdout=org.apache.log4j.ConsoleAppender</span><br><span>log4j.appender.stdout.Target=System.out</span><br><span>log4j.appender.stdout.layout=org.apache.log4j.PatternLayout</span><br><span>log4j.appender.stdout.layout.ConversionPattern=%d{ABSOLUTE} %5p %c<b>{1}</b>:%L - %m%n</span><br><br><span>### direct messages to file hibernate.log ###</span><br><span>#log4j.appender.file=org.apache.log4j.FileAppender</span><br><span>#log4j.appender.file.File=hibernate.log</span><br><span>#log4j.appender.file.layout=org.apache.log4j.PatternLayout</span><br><span>#log4j.appender.file.layout.ConversionPattern=%d{ABSOLUTE} %5p %c{1}:%L - %m%n</span><br><br><span>### set log levels - for more verbose logging change 'info' to 'debug' ###</span><br><br><span>log4j.rootLogger=debug, stdout</span>
Create the database and tables
I
use PostgreSQL in the tutorial text but you can find MySQL specific
source code in the source code, I provided.
Create
a database named library and use the following script to create the
tables.
PostgreSQL
CREATE TABLE book
(
id serial,
title text,
author text,
borrowsBy int4,
primary key (id)
) ;
MySQL
CREATE TABLE `book` (
`id` INT NOT NULL AUTO_INCREMENT ,
`title` VARCHAR NOT NULL ,
`author` VARCHAR NOT NULL ,
`borrowedby` INT,
PRIMARY KEY ( `id` )
) TYPE = INNODB ;
Why do I use PostreSQL?
I like PostgreSQL very much. It provides
features like Triggers, Stored Procedures, Views for quite a long
time compared to MySql, it has a better licence model, a wide choice
of languages to create stored procedures including pg/psql, c and
others. I have heard ;-) that it is better scalable when you are not
having a simple web application reading data but a large scale
application using transactions, triggers, stored procedures and a lot
of complex queries.
The structure
The
solution should be portable between different database server, so we
need to encapsulate the access to the database. A good way to make
your application not aware of a special implementation, is to use an
interface.
Why interfaces are useful?
I
will give you some reasons in favour of using interfaces. Imagine you
wrote a class dealing with your MySql database.
public class MyLibrary {<br><span> public void doSomething(){</span><br><span> // I will call a MySQL database now</span><br><span> } </span><br><span> public void doSomethingElse(){</span><br><span> // I will call a MySQL database now</span><br><span> }</span><br><span>}</span>
When you create
a different class dealing with a PostgreSQL database you will have to
replace the MyLibrary class with the MyLibraryPostgreSQL class
everywhere.
When
you create an interface for example:
public interface MyLibrary {
public abstract void doSomething();
public abstract void doSomethingElse();
}
and write
implementations like the following:
public class MyLibraryMySQLImp implements MyLibrary {
public void doSomething(){
// I will call a MySQL database now
}
public void doSomethingElse(){
// I will call a MySQL database now
}
}
you can pass
the interface as parameter to your business method.
Void businessMethod(MyLibrary myLib){
myLib.doSomething();
}
Your code no
longer knows which implementation it got and will work on any
implementations.
Creating the basic classes
Class book
The
class book is a normal Java bean with private attributes and public
getter/setter and constructor method.
Press
Ctrl + n (Strg + n) and select class to open the class wizard.
Choose Book as name and de.laliluna.library as package. Add the
private attributes and generate all getters and setters (context menu
-> source -> generate getters/setters; consider to define a
shortcut key to do this). Add the contructor methods.
package de.laliluna.library;
public class Book {
// unique number to indentify the book
private Integer id;
// hm the title
private String title;
// the authors name
private String author;
// null or the id of the client who borrowed the book
private Integer borrowedBy;
public Book(){
}
public Book(Integer id, String title, String author, Integer borrowedBy){
this.setId(id);
this.setTitle(title);
this.setAuthor(author);
this.setBorrowedBy(borrowedBy);
}
public String getAuthor() {
return author;
}
public void setAuthor(String author) {
this.author = author;
}
public Integer getBorrowedBy() {
return borrowedBy;
}
public void setBorrowedBy(Integer borrowedBy) {
this.borrowedBy = borrowedBy;
}
public Integer getId() {
return id;
}
public void setId(Integer id) {
this.id = id;
}
public String getTitle() {
return title;
}
public void setTitle(String title) {
this.title = title;
}
}
Interface and Implementation
Press
Ctrl+n (Strg+n) and select interface to create a new
interface named libraryDao.
Add
the following code.
package de.laliluna.library;<br><span>import java.util.List;</span><br><br><span>public interface LibraryDao {</span><br><br><span> /**</span><br><span> * gets id generated from db and insert book in database</span><br><span> * @param book</span><br><span> * @return book with new generated id </span><br><span> */</span><br><span> public abstract Book insertBook(Book book);</span><br><span> </span><br><span> /**</span><br><span> * updates the book in the database</span><br><span> * @param book</span><br><span> */</span><br><span> public abstract void updateBook(Book book);</span><br><span> </span><br><span> /**</span><br><span> * deletes book in the database</span><br><span> * @param book</span><br><span> */</span><br><span> public abstract void deleteBook(Book book);</span><br><br><span> /**</span><br><span> * loads all books from the database and puts them in a java.util.List</span><br><span> * @return list of books</span><br><span> */</span><br><span> public abstract List getBooks();</span><br><br><span>}</span>

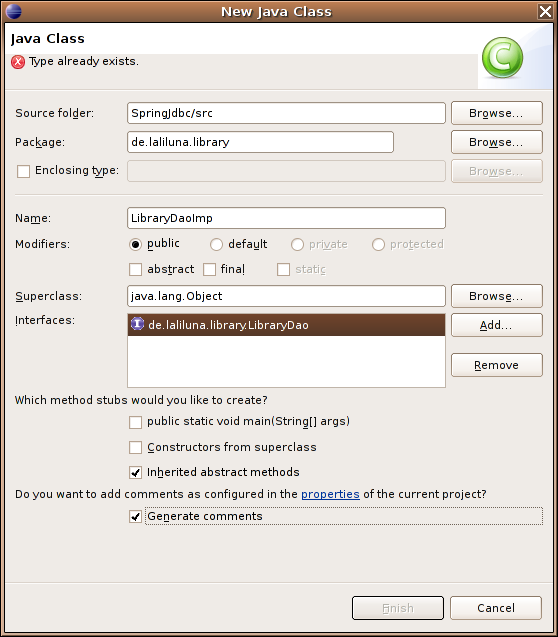

Create a new
class libraryDaoImp and add the interface you just created to the
interface list. Make sure to check the options to generate abstract
methods and comments.
We
will use a Spring template to access the database. A spring template
keeps us away from dealing with JDBC datasources and connections.
Add a private attribute named jdbcTemplate and generate
(context menu -> source -> generate getter/setter) or type the
setter method. In addition we will need an incrementer to get the
value of an autoincrement field from the database. Create it as
private attribute and generate the setter method.
The
method insertBook which is shown below and the other interface
methods should be generated when you followed our instruction.
public class LibraryDaoImp implements LibraryDao {
private JdbcTemplate jdbcTemplate;
private DataFieldMaxValueIncrementer bookIncrementer;
public void setJdbcTemplate(JdbcTemplate jdbcTemplate){
this.jdbcTemplate = jdbcTemplate;
}
public void setBookIncrementer(DataFieldMaxValueIncrementer bookIncrementer) {
this.bookIncrementer = bookIncrementer;
}
/* (non-Javadoc)
* @see de.laliluna.library.LibraryDao#insertBook(de.laliluna.library.Book)
*/
public Book insertBook(Book book) {
// TODO Auto-generated method stub
return null;
}
……………………..
To insert,
update and to delete needs no further preparation, so have a look at
the source code:
public Book insertBook(Book book) {
//get next autoincrement value
Integer id = bookIncrementer.nextIntValue();
book.setId(id);
String sql = “insert into book (id, title, author) values (?,?,?)”;
Object args []= new Object[] { id, book.getTitle(), book.getAuthor() };
int types[] = new int[] { Types.INTEGER, Types.VARCHAR, Types.VARCHAR };
jdbcTemplate.update(sql, args, types);
return book;
}
public void updateBook(Book book) {
String sql = “update book set title=?, author=?, borrowedby=? where id = ?”;
Object args []= new Object[] { book.getTitle(), book.getAuthor(), book.getBorrowedBy(), book.getId() };
int types[] = new int[] { Types.VARCHAR, Types.VARCHAR, Types.INTEGER, Types.INTEGER };
jdbcTemplate.update(sql, args, types);
}
public void deleteBook(Book book) {
String sql = “delete from book where id = ?”;
Object params[] = new Object[] {book.getId()};
int types[] = new int [] {Types.INTEGER};
jdbcTemplate.update(sql, params, types);
}
The jdbc
template provides a convenient method to encapsulate all the handling
with the datasource and the connection. We will configure the
datasource later. Each query needs the sql, the array of parameters
to the query and an array of types, showing which kind of parameters
we are passing.
You
need not to pass the types but may have Spring to find out which
types are passed. But this can be a problem when passing null values.
So just don’t do it.
We
use book objects anywhere so when we read data from the database we
will have to map the resultset of a query to the class. The spring
JdbcTemplate provides a convenient method to read data but this
method needs a RowMapper, i.e. a class implementing the
RowMapperInterface. Spring will call the method mapRow for each row
in the resultset to map the resultset to the class.
package de.laliluna.library;<br><br><span>import java.sql.ResultSet;</span><br><span>import java.sql.SQLException;</span><br><span>import org.springframework.jdbc.core.RowMapper;</span><br><br><span>/**</span><br><span>* rowmapper is used by Spring to read a line from a database table </span><br><span>* and to fill an instance of the class with the values</span><br><span>*/</span><br><span>public class BookRowMapper implements RowMapper {</span><br><br><span> public Object mapRow(ResultSet rs, int rowNum) throws SQLException {</span><br><span> // I use JDK 5 so I do not have to wrap int with an Integer object</span><br><span> Book book = new Book(rs.getInt("id"), rs.getString("title"), rs.getString("author"),</span><br><span> rs.getInt("borrowedby"));</span><br><span> return book;</span><br><span> }</span><br><span>}</span>
Now, we can
create our getBooks method. It is really simple isn’t it.
public List getBooks() {<br><span> String sql = "select * from book";</span><br><span> return jdbcTemplate.query(sql, new BookRowMapper());</span><br><span> }</span>
Imagine you
would have to create a connection for each access of the database,
close it and handle all the possible exceptions.
Adding inversion of control
In
our sourcecode we used a JbcTemplate and a
DataFieldMaxValueIncrementer but where does this come from. We could
of cause create this in our application or we can configure this in a
spring configuration file. Anyway, our LibraryDaoImp has not to deal
with this business but receives these things from the outside world.
This is called inversion of control. Our class does not decide from
where to get things, because our class should do business logic and
not deal with configuration settings etc.
Configuration in Java classes
We
need to create a datasource, a jdbcTemplate and an incrementer to
create finally our LibraryDaoImp. We will put all of this in an init
method.
Create
a new class TestClient in the package
test.de.laliluna.library. We will create a test to use our
insert, update, delete and list methods.
package test.de.laliluna.library;<br><br><span>import java.util.Iterator;</span><br><span>import java.util.List;</span><br><span>import org.springframework.jdbc.core.JdbcTemplate;</span><br><span>import org.springframework.jdbc.datasource.DriverManagerDataSource;</span><br><span>import org.springframework.jdbc.support.incrementer.DataFieldMaxValueIncrementer;</span><br><span>import org.springframework.jdbc.support.incrementer.PostgreSQLSequenceMaxValueIncrementer;</span><br><span>import de.laliluna.library.Book;</span><br><span>import de.laliluna.library.LibraryDao;</span><br><span>import de.laliluna.library.LibraryDaoImp;</span><br><br><span>public class TestClient {</span><br><br><span> /**</span><br><span> * @param args</span><br><span> */</span><br><span> public static void main(String[] args) {</span><br><span> TestClient testClient = new TestClient();</span><br><span> testClient.testUsingJava();</span><br><span> }</span><br><span> </span><br><span> private void testUsingJava() {</span><br><span> LibraryDao libraryDao = init();</span><br><span> testInsertUpdateDelete(libraryDao);</span><br><span> }</span><br><br><span> private void testInsertUpdateDelete(LibraryDao libraryDao) {</span><br><span> // insert a book</span><br><span> Book book = libraryDao.insertBook(new Book(null,</span><br><span> "My life as Java bean", "Sebastian", null));</span><br><span> System.out.println("List books:");</span><br><span> List famousBooks = libraryDao.getBooks();</span><br><span> for (Iterator iter = famousBooks.iterator(); iter.hasNext();) {</span><br><span> Book element = (Book) iter.next();</span><br><span> System.out.println("Book: " + element.getTitle() + " written by "</span><br><span> + element.getAuthor());</span><br><span> }</span><br><span> //update a book</span><br><span> book.setTitle("My life as Java bean, edition 2");</span><br><span> libraryDao.updateBook(book);</span><br><span> System.out.println("List books:");</span><br><span> famousBooks = libraryDao.getBooks();</span><br><span> for (Iterator iter = famousBooks.iterator(); iter.hasNext();) {</span><br><span> Book element = (Book) iter.next();</span><br><span> System.out.println("Book: " + element.getTitle() + " written by "</span><br><span> + element.getAuthor());</span><br><span> }</span><br><span> //delete the book</span><br><span> libraryDao.deleteBook(book);</span><br><span> System.out.println("List books:");</span><br><span> famousBooks = libraryDao.getBooks();</span><br><span> for (Iterator iter = famousBooks.iterator(); iter.hasNext();) {</span><br><span> Book element = (Book) iter.next();</span><br><span> System.out.println("Book: " + element.getTitle() + " written by "</span><br><span> + element.getAuthor());</span><br><span> }</span><br><span> }</span><br><br><span> private LibraryDao init() {</span><br><span> JdbcTemplate jdbcTemplate = new JdbcTemplate(getDataSource());</span><br><span> DataFieldMaxValueIncrementer incrementer = new PostgreSQLSequenceMaxValueIncrementer(</span><br><span> getDataSource(), "book_id_seq");</span><br><br><span> LibraryDao libraryDao = new LibraryDaoImp();</span><br><span> ((LibraryDaoImp) libraryDao).setBookIncrementer(incrementer);</span><br><span> ((LibraryDaoImp) libraryDao).setJdbcTemplate(jdbcTemplate);</span><br><span> return libraryDao;</span><br><span> }</span><br><br><span> private static DriverManagerDataSource getDataSource() {</span><br><span> DriverManagerDataSource dataSource = new DriverManagerDataSource();</span><br><span> dataSource.setDriverClassName("org.postgresql.Driver");</span><br><span> dataSource.setUsername("postgres");</span><br><span> dataSource.setPassword("");</span><br><span> dataSource.setUrl("jdbc:postgresql://localhost/library");</span><br><span> return dataSource;</span><br><span> }</span><br><span>}</span>
Configuration with Spring config files
To
use the Spring config file we need to add a method to our test class
and import two Spring classes.
import org.springframework.beans.factory.xml.XmlBeanFactory;
import org.springframework.core.io.ClassPathResource;
…….
public void testUsingSpringConfig() {
ClassPathResource classPathResource = new ClassPathResource(
“spring-config.xml”);
XmlBeanFactory beanFactory = new XmlBeanFactory(classPathResource);
LibraryDao libraryDao = (LibraryDao) beanFactory.getBean(“libraryDao”);
testInsertUpdateDelete(libraryDao);
}
The code above
will read a resource from the spring configuration file. The bean
factory reads the resource and does what is a factory’s job: it
produces beans.
We
can call the factory to produce a full initialized libraryDao.
Now
we will create the configuration file. Create a file named
spring-config.xml in the /src directory.
<?xml version=“1.0” encoding=“UTF-8”?>
<!DOCTYPE beans PUBLIC “-//SPRING//DTD BEAN//EN” “http://www.springframework.org/dtd/spring-beans.dtd”>
<beans>
<bean id=“libraryDao” class=“de.laliluna.library.LibraryDaoImp” singleton=“false”>
<property name=“jdbcTemplate”>
<ref bean=“jdbcTemplate” />
</property>
<property name=“bookIncrementer”>
<ref bean=“bookincrementer” />
</property>
</bean>
<bean id=“jdbcTemplate” class=“org.springframework.jdbc.core.JdbcTemplate”>
<constructor-arg>
<ref bean=“datasource” />
</constructor-arg>
</bean>
<bean id=“bookincrementer” class=“org.springframework.jdbc.support.incrementer.PostgreSQLSequenceMaxValueIncrementer”>
<constructor-arg>
<ref bean=“datasource” />
</constructor-arg>
<constructor-arg><value>book_id_seq</value> </constructor-arg>
</bean>
<bean id=“datasource” class=“org.springframework.jdbc.datasource.DriverManagerDataSource”>
<property name=“driverClassName” value=“org.postgresql.Driver” />
<property name=“url” value=“jdbc:postgresql://localhost/library” />
<property name=“username” value=“postgres” />
<property name=“password” value="" />
</bean>
</beans>
The resource
file finds a libraryDao configuration first. It needs to set two
properties which are referencing other beans
<ref bean=“jdbcTemplate” />
It finds the
jdbcTemplate bean configuration.
Its
constructor needs a datasource, so it creates this first.
<constructor-arg><br><span> <ref bean="datasource" /></span><br><span> </constructor-arg></span>
The properties
driverClassName, url, username and password are set, i.e. the
setDriverClassName, setUrl, … methods are called.
Now,
the jdbcTemplate gets created and then the book incrementer and then
the libraryDao.
Test your application
You
can now run your application and see that both approaches are
working. The approach using a configuration file is the standard
approach of Spring to wire beans. I wrote the ?Java way? to
explain what is happening behind the scenes. (Even if you could do
the ?Java way? when you know how to deal with factories, etc).
Spring
does provide a lot of features to wire beans in configuration files.
Have a look at our other tutorials or at the reference.
Outlook
The
following topics can be found out by yourself, are comping up in the
next tutorials or can be learned in our seminars.
Replacing the datasource with a connection pool
The
use of a simple datasource is not adequate for larger applications.
Spring provides apdapters to connection pools like dbcp or pools
coming from JNDI contexts. The latter is provided by Tomcat, JBoss,
Websphere etc.
Object Relational Mapping
We
should replace the JDBC access with a Object relational mapping
solution like Hibernate, because Hibernate provides already all we
have just created by hand and even more.
Alternative implementation
We
could use MappingSqlQuery or SqlUpdate objects as alternative to the
implementation we chose.
Adding transactions to our application
Once
we add business methods dealing with multiple queries in the same
business process, we will have to use transactions. Spring provides
adapters so that we could use the transaction manager from J2EE
solutions or transactions as provided from the database.
Copyright and disclaimer
This
tutorial is copyright of Sebastian Hennebrueder, laliluna.de. You
may download a tutorial for your own personal use but not
redistribute it. You must not remove
or modify this copyright notice.
The
tutorial is provided as is. I do not give any warranty or guaranty
any fitness for a particular purpose. In no event shall I be
liable to any party for direct, indirect, special, incidental, or
consequential damages, including lost profits, arising out of the use
of this tutorial, even if I has been advised of the possibility of
such damage.
