Java security in web application, typical attacks, Tomcat security
This
article gives an overview about different attack mechanisms against
Java web applications and J2EE applications. It introduces available
security concepts in Java like JAAS and Sandbox security.
Furthermore, security related design patterns are explained
The
article is based on a workshop, I attended on the Jax Conference 2006
in Wiesbaden Germany. The topic was Java EE Application Security and
Security Patterns. It was hold by Bruce Sams (www.optimabit.de).
I added some information from other resources as well and created
some more detailed examples.
General
Author:
Sebastian Hennebrueder
Date:
March, 3rd 2007
Article
as PDF:
http://www.laliluna.de/download/java-security-tutorial.pdf
Remove Comments
Delete
comments in deployed documents. An intruder could use this
information to attack your side. You should not use any HTML comments
in your JSP.
<!-- HTML comment: looks up user data in table tuser -->
Even if you use a
comment like the following in your JSP, there can be a situation, in
which the JSP is not rendered and the comment is visible to a
intruder (-> directory browsing).
<% /* JSP comment: looks up user data in table user */ %>
Directory Browsing
Directory
browsing allows other people to see all your JSP files without being
rendered. They could retrieve valuable information about your
application from these files. You have multiple options to protect
your JSP files:
Deactive
directory browsing on server and application level.-
Protect
the JSP directories with JAAS. -
Change
the default servlet coming with Tomcat. This servlet does provide
the browsing feature.
Multiple Level of Security
Features
like Directory Browsing, Session Time Out can be configured on server
level and application level in the web.xml. You should have tight
server level settings so that a incautious developer have a secure
application by default.
Typical problems of web applications
-
Self
made Session id -
Incomplete
validation of user input -
Server
configuration
Do
not reinvent the Session handling. The session provided by nowadays
application server should be secure. There might have been problems
for some application servers in the early days but this is a long
time ago.
Imagine
you would use a timestamp as session. An intruder could easily take
over an existing session by trying out current timestamps.
Normally
a Tomcat session looks like
http://localhost/MyApplication/listUser.do;jsessionid=2CFB532547A143436A46727B3B4C7C0A
If
you use a timestamp as session id you will have something like:
http://localhost/MyApplication/listUser.do;mySessionId=2006-05-25-19:31:050
Even
if your session id is more complicated than a timestamp, you should
keep in mind that an attacker could create a list of sessions in
search for a pattern in your session id.
Sandbox Security
The
Java virtual machine allows to define access permission to the
filesystem, classes, sockets, JVM attributes for all applications
running in the JVM. Below you can find an extract of the properties
provided with Tomcat. This is a powerful option to set up a secure
application server which is not able to get access to other
application server.
grant { <br><span lang="de-DE">// Required for JNDI lookup of named JDBC DataSource's and</span>
<span lang="de-DE">// javamail named MimePart DataSource used to send mail</span>
<span lang="de-DE">permission java.util.PropertyPermission "java.home", "read";</span>
<span lang="de-DE">permission java.util.PropertyPermission "java.naming.*", "read";</span>
<span lang="de-DE">permission java.util.PropertyPermission "javax.sql.*", "read";</span>
<span lang="de-DE">// OS Specific properties to allow read access</span>
<span lang="de-DE">permission java.util.PropertyPermission "os.name", "read";</span>
<span lang="de-DE">permission java.util.PropertyPermission "os.version", "read";</span>
<span lang="de-DE">// Required for OpenJMX</span>
<span lang="de-DE">permission java.lang.RuntimePermission "getAttribute";</span>
<span lang="de-DE"> // Allow read of JAXP compliant XML parser debug</span>
<span lang="de-DE"> permission java.util.PropertyPermission "jaxp.debug", "read";</span>
<span lang="de-DE">// Precompiled JSPs need access to this package.</span>
<span lang="de-DE">permission java.lang.RuntimePermission "accessClassInPackage.org.apache.jasper.runtime";</span>
<span lang="de-DE">permission java.lang.RuntimePermission "accessClassInPackage.org.apache.jasper.runtime.*"; </span>
<span lang="de-DE">};</span>
<span lang="de-DE">grant codeBase "file:${catalina.home}/webapps/examples/-" {</span>
<span lang="de-DE">permission java.net.SocketPermission "dbhost.mycompany.com:5432", "connect";</span>
<span lang="de-DE">permission java.net.SocketPermission "*.noaa.gov:80", "connect";</span>
<span lang="de-DE">};</span>
If you allow a JVM
to access JNI you can escape from this protection. JNI allows to
start applications developed in languages like C, Delphi etc.
Some
commercial application servers allow to set up sandbox security on a
per application level. This is a very powerful feature in
environments where security is extremely important or where a lot of
different applications are running.
JAAS
Java
Authentication and Authorization Service (JAAS) is a standard
mechanism implemented in all application server to protect your
applications. The login mechanisms is implemented outside your
application but you can access the user and his roles within your
application.
In
a web application you can need to do the following to activate JAAS:
Add a security constraint
In
the following application, I added a constraint in the web.xml for
all calls to any files and folders below my application name. I
defined that only users with the role application have access to this
file. You can define access options like post, get or put or required
protocols like SSL as well.
<?xml version="1.0" encoding="UTF-8"?><br><span lang="de-DE"><web-app xmlns="http://java.sun.com/xml/ns/j2ee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" <br>xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd" version="2.4"></span>
<span lang="de-DE">................. snip ...............</span>
<span lang="de-DE"><security-constraint></span>
<span lang="de-DE"><display-name>Laliluna application</display-name></span>
<span lang="de-DE"><web-resource-collection></span>
<span lang="de-DE"><web-resource-name>Protected Area</web-resource-name></span>
<span lang="de-DE"><!-- Define the context-relative URL(s) to be protected --></span>
<span lang="de-DE"><url-pattern>/*</url-pattern></span>
<span lang="de-DE"></web-resource-collection></span>
<span lang="de-DE"><auth-constraint></span>
<span lang="de-DE"><!-- Anyone with one of the listed roles may access this area --></span>
<span lang="de-DE"><role-name>application</role-name></span>
<span lang="de-DE"></auth-constraint></span>
<span lang="de-DE"></security-constraint></span>
<span lang="de-DE">...... snip .............</span>
<span lang="de-DE"></web-app></span>
Add a login mechanism
Servlet
containers like Resin, Tomcat etc offers different kind of login
mechanisms. Typical mechanisms are a form popping up in your browser
or an individual designed login from. Below we defined a simple login
which will popup in the Browser.
<?xml version=“1.0” encoding=“UTF-8”?>
<web-app xmlns=“http://java.sun.com/xml/ns/j2ee” xmlns:xsi=“http://www.w3.org/2001/XMLSchema-instance”
xsi:schemaLocation=“http://java.sun.com/xml/ns/j2ee http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd” version=“2.4”>
…………….. snip ……………
<login-config>
<auth-method>BASIC</auth-method>
<realm-name>Telekom Training Export</realm-name>
</login-config>
<!— Security roles referenced by this web application —>
<security-role>
<role-name>application</role-name>
</security-role>
</web-app>
Configure a Realm
Finally
you must configure a place where the application server can lookup
user, roles and passwords.
This
can be file based, LDAP or a database. Below you can find a
configuration in the JBoss application server.
<!— Security domain for JBossMQ —>
<application-policy name = “jbossmq”>
<authentication>
<login-module code = “org.jboss.security.auth.spi.DatabaseServerLoginModule”
flag = “required”>
<module-option name = “unauthenticatedIdentity”>guest</module-option>
<module-option name = “dsJndiName”>java:/DefaultDS</module-option>
<module-option name = “principalsQuery”>SELECT PASSWD FROM JMS_USERS WHERE USERID=?</module-option>
<module-option name = “rolesQuery”>SELECT ROLEID, ‘Roles’ FROM JMS_ROLES WHERE USERID=?</module-option>
</login-module>
</authentication>
</application-policy>
To
sum up, JAAS allows you to plug in security in a very flexible
manner. You may consider not to reinvent a security mechanisms for
your application.
Context of a Web application
A
JAAS login is only valid for one web application. Even if the same
role is applicable in two web applications you would have to login in
again. The session will not be reused in the other application.
JAAS and EJB
Enterprise
Java Beans are by default unprotected. If you implement Remote
interfaces for your EJBs, they are accessible from every PC having
access to your server. To protect your EJB you have different options
do
not use remote interfaces (if you do not need them)-
use
JAAS to protect your EJBs -
protect
the access of protocols (normally RMI) to your server
Role Linking
If
you have a lot of applications running on the same server, you will
have sooner or later applications having the same roles and users. In
most cases this is not a wanted situation. The solution is to link a
application user role to another external role.
Single Sign On
There
are two approaches for Single Sign on. The first approach is session
sharing across applications. The second approach is two move the
login mechanisms outside your application server.
The
latter case requires a security token which must be passed to the
application. If you are interested in this topic you may have a look
at Kerberos Single Sign On.
SQL Injection in Java Web applications
Imagine
a login form in a web application where the user inputs a user name
and a password.
Your
application issues a SQL statement:
select username from user where username= 'Peter' and password = 'secret'
If the user inputs
for password something like
secret’ or ‘1’=‘1
Your query will be
something like
select username from user where username= ’Peter’ and password = ‘secret’ or ‘1’=‘1’
The same kind of
injection can happen with any kind of search form. If a intruder
wants to reduce your product prices he could input the following in
your search form.
Blablub’;update product set price = 1 where product_id=55 and ‘1’=‘1
Your search query
will be something like
select from product where name = ’Blablub’;update product set price = 1 where product_id=55 and ‘1’=‘1’
These kind of
attacks are typical for applications using JDBC directly. A good
protection is to use prepared statements or Object Relational Mapping
solutions like Hibernate, EJB or JDO.
Java Script attacks
Cross side scripting
When
a intruder can take over your session he is working with your
account. Imagine somebody takes over your session in a Internet Shop
and orders products. You will get a lot of problems.
An
intruder could post links into a forum to a internet shop having very
low prices. Once you click on this link the website is loaded into a
frame. Outside the frame there is a Java script application sending
input of your frame or your session to another website. Once the
intruder has access to your session we will hold your session open to
misuse it later or when you are not available.
This
is not a problem specific to Java applications but to web
applications in general.
You
could enforce that your application is not running inside another
frame, to solve this security problem.
Another
approach to have a improved security is to enforce a maximum session
life time. If your users can accept that their session is not living
longer than two hours, you could invalidate all older sessions
periodically. This makes it impossible for intruders to keep sessions
alive for a longer time.
Attacking forms
If
you validate forms using JavaScript or you keep information in your
form with hidden fields you can be attacked easily. Let us assume
that we have a multi page form and you save the customer level in a
hidden field. Dependent on the customer level a customer gets a
special discount.
Using
a web proxy like Scarab you can easily rewrite hidden fields and get
a special discount for your order.
Security Design Pattern

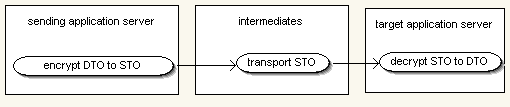

Secure Transport Object (STO)
In
distributed environments you have to transport serialized objects
from one application server to another. The transport item could be a
message, a serialized object of a Remote EJB or any other kind of
data on a enterprise service bus.
The
connection between your application server could be insecure or your
transport item could have to pass multiple intermediates.
In
this situation the pattern Secure Transport Object is a good choice
to protect your data. It is a Data Transfer Object (DTO) which is
protected by encryption. The sender encrypts the data using a
password or a public key. The STO passes any number of intermediates
and reaches the target which decrypts the STO using the same password
or a private key.
You
could implement a more fine grained approach as well, allowing that
only some attributes of an object are protected.
Intercepting Validator Pattern
In
order to validate all input in a proper manner and to protect your
application against JavaScript or SQL injection you can use the
Intercepting Validation Pattern. Instead of validating input
decentralized in your application you have a central mechanism to
validate the user input.
Secure Based Action
This
pattern defines a single point of entry for your application and
enforces security restriction. For example, you could implement a
Filter Servlet validating that you are allowed to call the specified
method. In a Struts application you could overwrite the default
controller and add the validation of security constraints.
Copyright and disclaimer
This
tutorial is copyright of Sebastian Hennebrueder, laliluna.de. You
may download a tutorial for your own personal use but not
redistribute it. You must not remove
or modify this copyright notice.
The
tutorial is provided as is. I do not give any warranty or guaranty
any fitness for a particular purpose. In no event shall I be
liable to any party for direct, indirect, special, incidental, or
consequential damages, including lost profits, arising out of the use
of this tutorial, even if I has been advised of the possibility of
such damage.
